3D Curved LED Screen

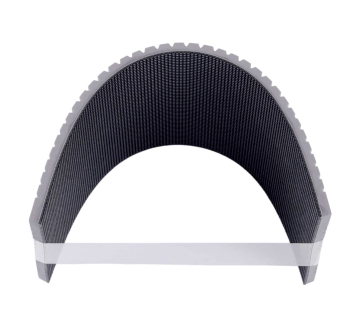

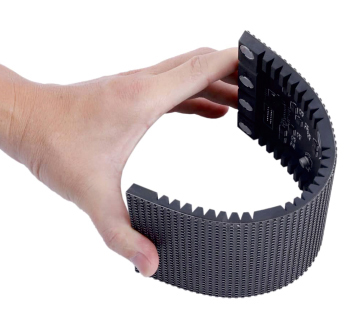

An Outer Arc Curve LED Screen is a convex-curved display designed to wrap around structures or create expansive, outward-facing visuals for large audiences. Ideal for outdoor advertising, stadiums, or architectural installations, these screens use flexible or angled modules to form smooth outer arcs, delivering vibrant, wide-angle imagery.
Specifications
- Pixel Pitch: 2.5mm to 16mm (e.g., P3.91, P6, P10)
- Brightness: 6000 nits for outdoor visibility
- Refresh Rate: 1920–3840 Hz
- Curving Capability: Outer arc radius ≥0.5m, adjustable angles (e.g., -15° to 15°)
- Weight: ~8–15 kg/m²
- Cabinet Material: Die-cast aluminum or flexible PCB
- Operating Temperature: -20°C to +50°CIP Rating: IP65 (weatherproof)
- Installation: Hanging, fixed, or custom steel structure
- Control System: NovaStar, Colorlight, or equivalent
- Power Consumption: Avg. 60–150 W/panel
