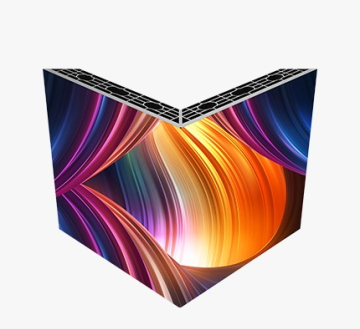

3D Naked Eye LED Screen (L Sharp Shape)
A Sharp Curve LED Screen is a specialized display designed to form tight, precise curves or angles, enabling dynamic, non-linear configurations for applications like immersive installations, retail displays, gaming arenas, or creative stage designs. These screens use advanced flexible or modular LED technology to achieve sharp bends while delivering vibrant, high-quality visuals.
Specifications
- Pixel Pitch: 1.2mm to 8mm (e.g., P1.5, P2.6, P3.9)
- Brightness: 6000 nits (indoor/outdoor)
- Refresh Rate: 1920–3840 Hz
- Weight: ~6–12 kg/m²
- Cabinet Material: Flexible PCB, die-cast aluminum, or custom frames
- Curving Capability: Tight radius (as low as 0.3m); supports concave/convex or 90° corners
- Operating Temperature: -20°C to +50°CIP Rating: IP30 (indoor) or IP65 (outdoor)
- Installation: Magnetic connectors, truss, or custom mounting
- Control System: NovaStar, Colorlight, or similar
- Power Consumption: Avg. 50–130 W/panel

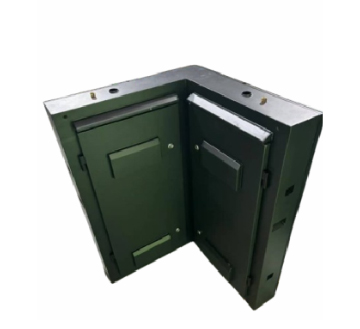

L - SHAPE CURVED (960 x 960. mm)
L - SHAPE CURVED (960 x 960. mm)
