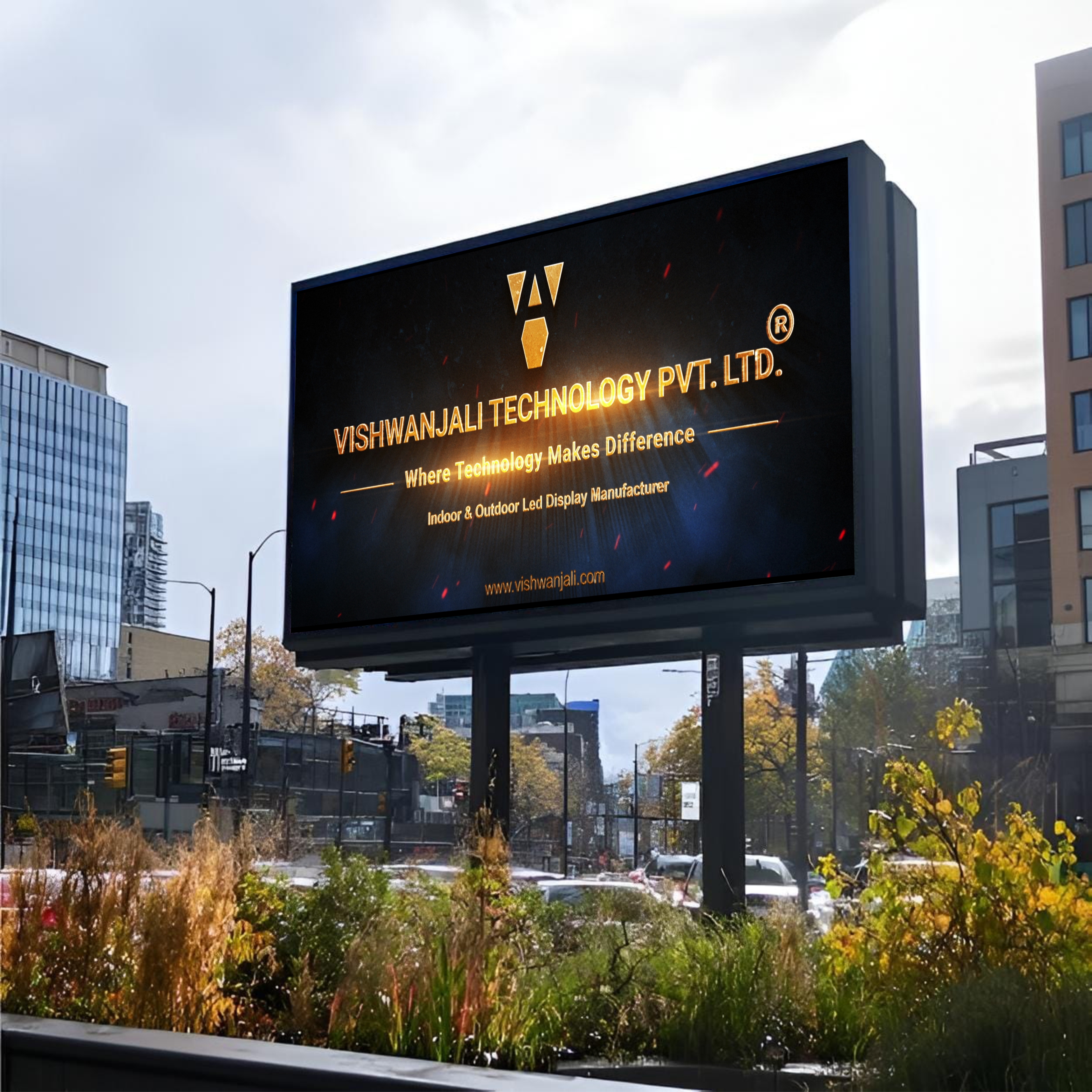

Double Pole LED Display
A double-pole unipole LED screen uses two poles to support a larger or double-sided display, maximizing exposure for bidirectional traffic. It can feature two back-to-back screens or a V-shaped configuration for enhanced visibility from multiple angles. These are suited for high-traffic intersections or commercial hubs.
Specifications
- Pixel Pitch: P2.5, P3, P4, P5, P6.6, P8, or P10 (smaller pitch for higher resolution).
- Structure: Galvanized steel pole/Metal Steel, concrete foundation, wind resistance up to 120–150 mph
- Brightness: 6000 nits (auto-adjustable with light sensors).
- Resolution: E.g., P5 at 12m x 4m yields ~2,400 x 800 pixels per side.
- Power Consumption: 400–1,000 W/m² (average, higher for dual displays).
- IP Rating: IP65 or IP67 for outdoor durability.
- Lifespan: ~100,000 hours With Refresh Rate 3840-7680 hz.
- Pole Size: 3M, 5M, 7M And Customised
- Control: Remote management via 4G/5G, Wi-Fi, or wired networks.
- Viewing Angle: Up to 160° per side; V-shape may offer 360° visibility.
